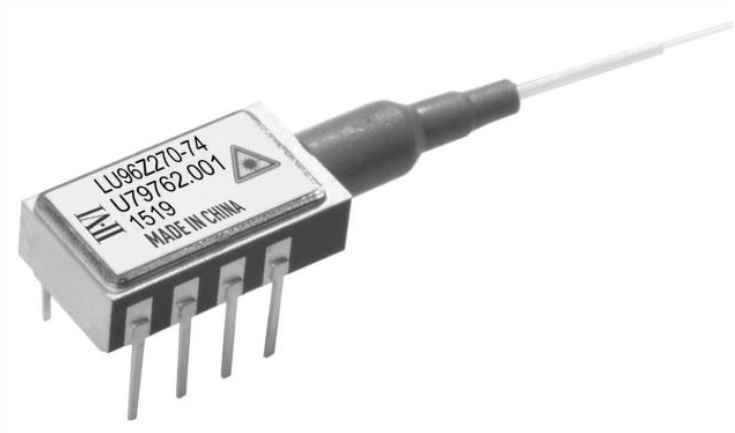

The LU96Z-series uncooled pump laser module in an 8-pin mini-DIL package is II-VI’s third-generation uncooled
pump module providing low power consumption for highly reliable metro, cross-connect, SFF single and multichannel amplifier designs plus high bit-rate, per-channel amplification.
The LU96Z-series is designed for uncooled operation at high temperature and power levels. Qualification of the
enhanced G08 chip ensures high reliability even at high operating power, 75°C. External Fiber Bragg Grating (FBG)
stabilization provides excellent wavelength and power stability over the entire operating temperature range.

Features
· Up to 300mW kink-free power over full operating temperature range
· Operating temperature range from -5°C to +75°C
· Polarization maintaining (PM) fiber
· Low power dissipation
· Small form factor mini-DIL package
· Wavelength stabilized by fiber Bragg grating over entire operating range
· Centre wavelength at 974 and 976nm
· Telcordia GR-468-CORE compliant
· RoHS compliant

Applications
· Low noise EDFA requiring higher optical power with low power consumption and small form-factor package
· Single or multi-stage EDFA applications including Single-channel and DWDM designs
