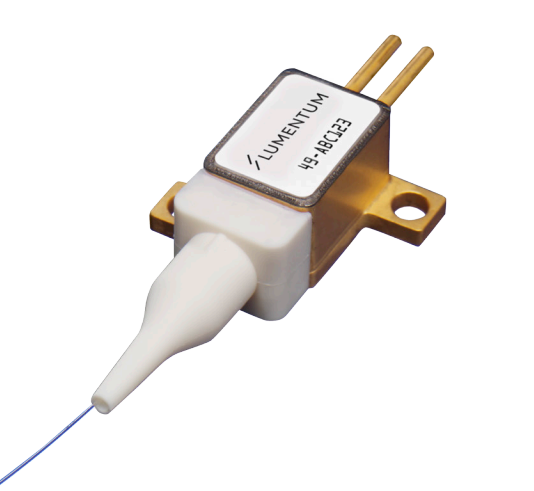

The Lumentum 4900 Series uncooled multimode pump modules simplify next-generation,
high-power erbium doped fber amplifer (EDFA) designs for CATV and FTTx applications by
eliminating the need for thermoelectric coolers and their control circuitry.

The 4900 Series builds upon the feld-proven success of the
Lumentum 4800 Series. The new pump features higher power in
a smaller, coolerless footprint with isolated electrical pins for
simplifed thermal and electrical management. Up to 10 W of
optical power from a 105 µm fber pigtail makes the 4900 Series
the ideal solution for the FTTx and CATV high-power EDFA
pumping market. In addition, the 4900 Series takes advantage of
existing global Lumentum infrastructure to combine a highly
reliable design with cost-effective manufacturing.

Key Features
• High output power up to 10 W
• 105 µm aperture
• 0.22 NA
• Isolated electrical contacts
• High reliability
Applications
• Er/Yb co-doped, double-clad fber amplifers
• High-power EDFAs for CATV and FTTx
