These lasers are designed as pump sources for erbium doped fiber amplifier (EDFA) applications. Processes and
techniques of coupling the fiber to the laser allow high output powers that are very stable with both time and
temperature.
The CM96Z***-7* series pump module utilizes a fiber Bragg grating design for enhanced wavelength and power
stability performance. This product has been designed to ensure superior wavelength locking over drive current,
temperature and optical feedback changes.
Devices are available with kink free output powers to 600mW.

Features
· High output power, up to 600mW kink free
· Single-mode fiber pigtail
· Fiber Bragg grating stabilization for wavelength locking over the entire operating conditions

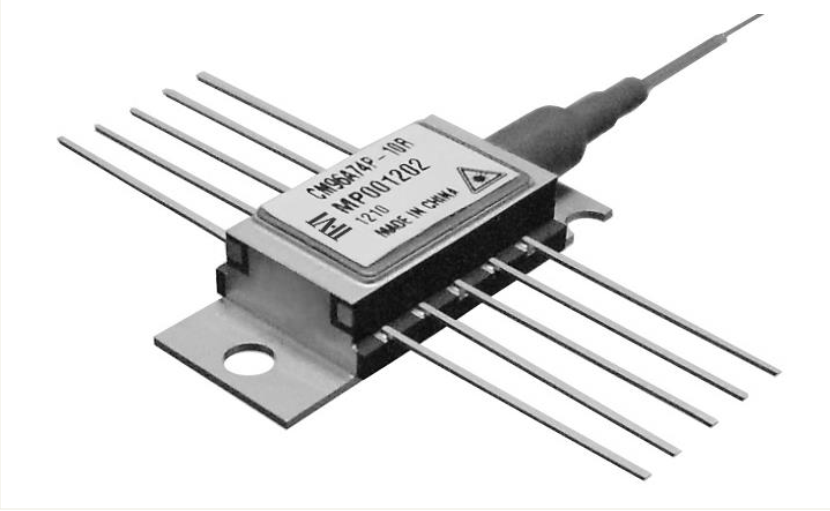

· Small form factor, hermetically sealed 10 pin minibutterfly package
· Pin-out compatibility with 14 pin BTF package
· Internal thermoelectric heatpump and monitor photodiode
· Telcordia GR-468-CORE compliant
· Field-proven high reliability
· RoHS compliant

Applications
· Low noise EDFAs
· Dense wavelength division multiplexing (DWDM) EDFAs
· CATV Applications
